Multichannel Potentiostat

<
>
Multichannel potentiostat(4/8 channels)

Independent multichannel potentiostat using "slot" desgin with channel expansion options. Models: CS3104, CS3004, CS3108, CS3008

- Current ±1A, Potential  ±10V for each channel
- Number of channel can be expanded due to "slot" design
- Number of channels: 4-8 for each set


Share:
View:253
Related Application
Contact Us
Corrtest Instruments
Jinfeng Building A, Intl Enterprise Center, Optics valley Ave.,East lake High-tech Dev. Zone, Wuhan city, 430074, China
Email: sales2@corrtest.com.cn
Phone/WhatsApp: +86 13469965984
Product Introduction

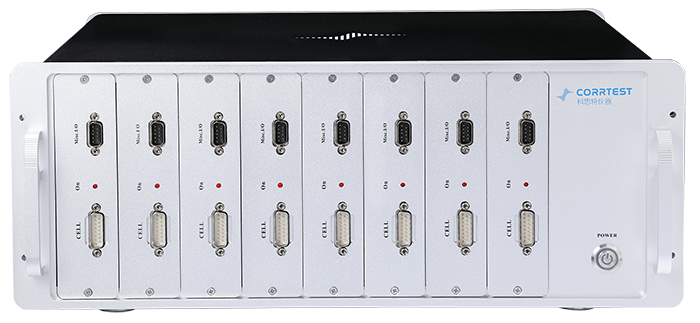

Corrtest Multichannel potentiostat/ galvanostat/EIS is a versatile instrument offering 8 slots.
Full floating module and electrical isolation design guarantee each channel is totally independent, which ensures accurate data and efficient simultaneous measurements.
Multichannel potentiostat brings convenience to those who have many samples, and is an ideal device for studies of energy materials, battery study, metal corrosion etc.
Number of channels can be customized. Different configuration ensures you get desired product
suiting to various budgets

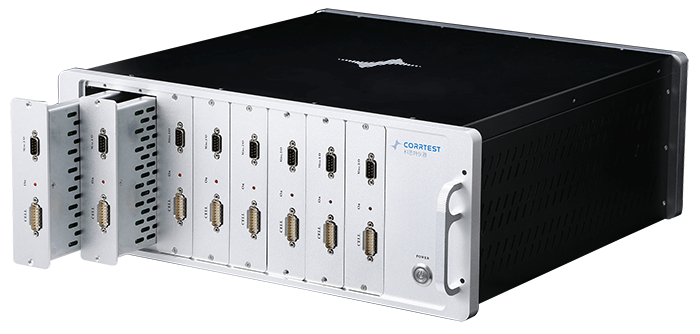

The number of channels is expandable by adding and installing more boards, thanks to the intelligent chassis and plug-in design. Each channel potential control range is10V, current control range ±1A, can meet experiment requirement for most people.

Application
- Reaction mechanism of Electrosynthesis, electrodeposition (electroplating), anodic oxidation.
- Electrochemical analysis, electro-catalysis, sensor;
- New energy materials, advanced functional materials, photoelectronic materials;
- Corrosion study of metals in water, concrete and soil etc;
- Fast evaluation of corrosion inhibitor, water stabilizer, coating and cathodic protection efficiency.


Advantages
High current/voltage: Applied potential range ±10V, current ±1A. It can meet the needs of most studies.
Comprehensive techniques: Built-in EIS (10μHz~1MHz) is equipped. There are comprehensive techniques in each channel.
Warranty: 5 years warranty. We're the manufacturer, and our engineers will provide technical support anytime you need.
Low cost: The price includes instrument host, software (experiment control & data processing), necessary cables, dummy cell. No other charges.
Reliability &quality: We've been in the market for 20 years, and now is the No. 1 brand of potentiostat product in China


Simultaneous Measurements

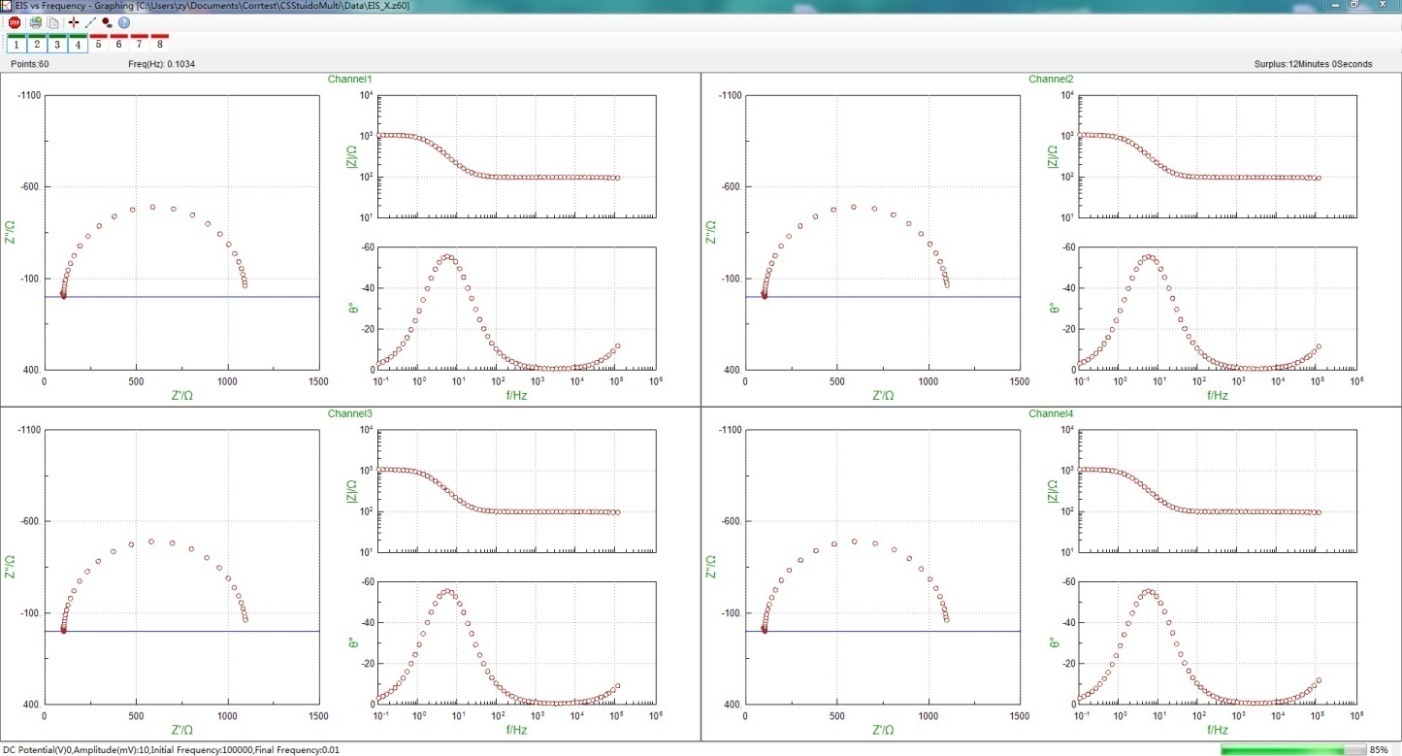

You can run a same experiment for each channel at the same time. Set the same parameters for each experiment once and run all independently. It's especially useful when you have many samples for one single test.

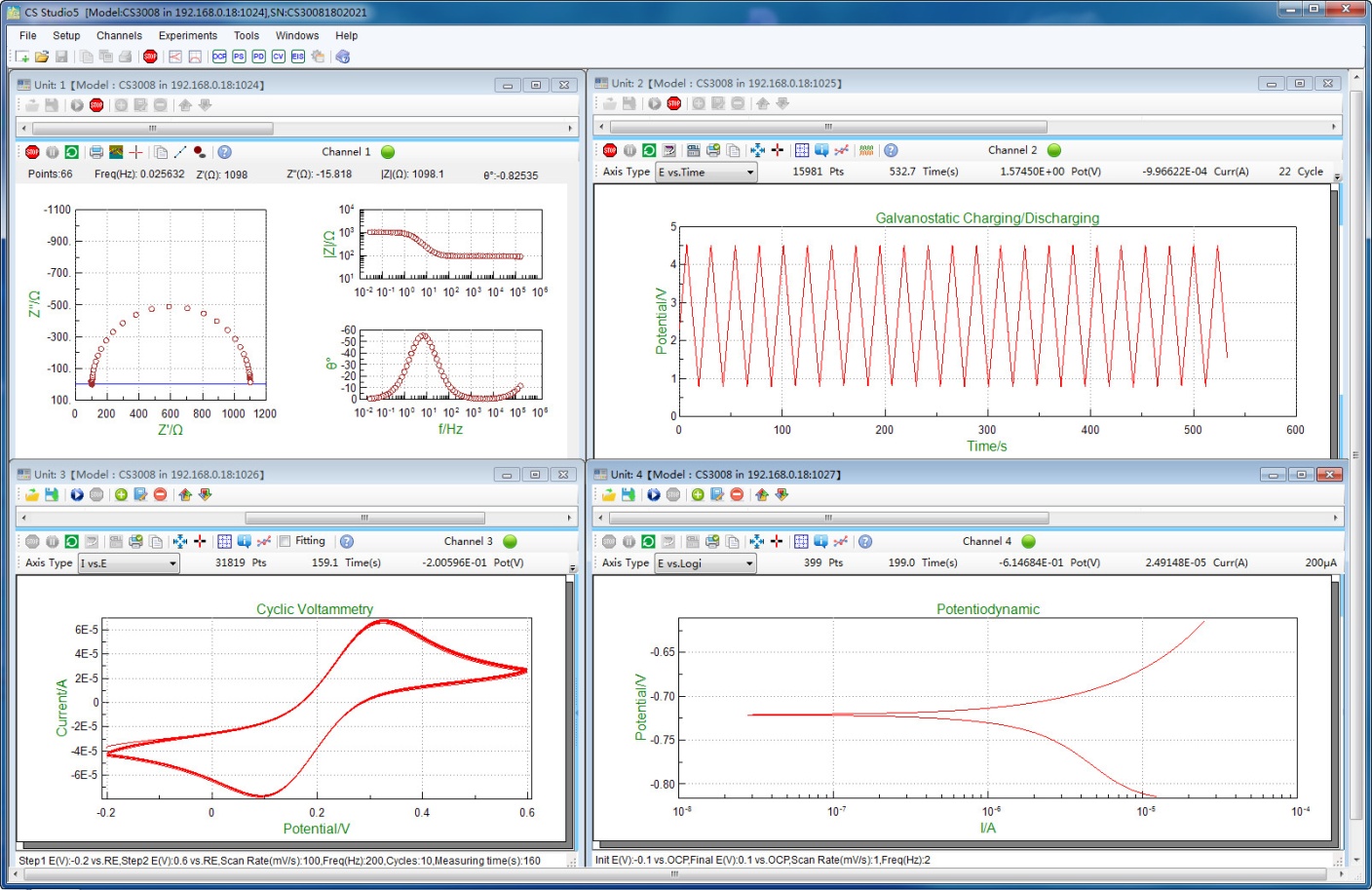

You can also choose different techniques in each channel. Set the parameters for each
experiment one by one, and run each experiment independently. As is shown in right picture, EIS, Galvanostatic charge & discharge, Cyclic Voltammetry, and polarization curve test are tested.



Specifications
Specifications
Number of channels: 4~8 Channel insulation resistance: >100MΩ
Communication: Ethernet Lower-pass filter: covering 8-decade
Potential control range: ±10V Constant current control range: ±1A
Potential accuracy: 0.1%×full range±1mV Current accuracy: 0.1%×full range
Potential resolution:10μV(>100Hz), 3μV(<10Hz) Current resolution: 1pA
Potential rise time: 1μs(<10mA),<10μs(<2A) Current range: 2nA ~1A, 10 ranges
Reference electrode input impedance: 1012Ω||20pF Maximum current output: 1A
Compliance voltage: ±21V Current increment during scan: 1mA @1A/ms
CV and LSV scan rate: 0.001mV~10000V/s Potential increment during scan: 0.076mV@1V/ms
CA and CC pulse width: 0.0001~65000s DPV and NPV pulse width: 0.0001~1000s
SWV frequency:0.001~100KHz CV minimum potential increment: 0.075mV
AD data acquisition:16bit@1MHz,20bit @1kHz IMP frequency:10μHz~1MHz
DA resolution:16bit, setup time:1μs Current and potential range: automatic
Operating System requirements:
Windows 7/8/10 /11
Weight: 12.5 Kg
Dimensions: 40*40*14cm
Electrochemical Impedance Spectroscopy (EIS)
Signal generator
Frequency range: 10μHz~1MHz AC signal amplitude: 1mV~2500mV
Frequency accuracy: 0.005% Signal resolution: 0.1mV RMS
DDS output impedance: 50Ω DC Bias: -10V~+10V
Wave distortion: <1% Waveform: sine wave, triangular wave, square wave
Scan mode: Logarithmic/linear, increase/decrease
Signal analyzer
Maximum integral time:106 cycles or 105s Measurement delay:0105S
Minimum integral time:10ms or the longest time of a cycle
DC offset compensation
Potential compensation range: -10V~+10V Current compensation range: -1A~+1A
Bandwidth adjustment: automatic and manual, 8-decade frequency range
Techniques

Model CS3104 CS3004 CS3108 CS3008
Number of channels 4 4 8 8
Feature EIS (10μHz~1MHz) One channel includes EIS(EIS*1) Every channel has EIS(EIS*4) One channel includes EIS(EIS*1) Every channel has EIS(EIS*8)

Stable polarization
  • Open Circuit Potential (OCP)
  • Potentiostatic (I-T curve)
  • Galvanostatic
  • Potentiodynamic (Tafel plot)
  • Galvanodynamic (DGP)
Transient Polarization
  • Multi Potential Steps
  • Multi Current Steps
  • Potential Stair-Step (VSTEP)
  • Galvanic Stair-Step (ISTEP)
Chrono Method
  • Chronopotentiometry (CP)
  • Chronoamperametry (CA)
  • Chronocaulometry (CC)
Voltammetry
  • Linear Sweep Voltammetry (LSV)
  • Cylic Voltammetry (CV)
  • Staircase Voltammetry (SCV)
  • Square Wave Voltammetry (SWV)
  • Differential Pulse Voltammetry (DPV)
  • Normal Pulse Voltammetry (NPV)#
  • Differential Normal Pulse Voltammetry (DNPV)
  • AC Voltammetry (ACV)
  • 2nd harmonic AC Voltammetry (SHACV)
  • Fourier Transform AC Voltammetry (FTACV)
Stripping Voltammetry
  • Potentiostatic Stripping
  • Linear Stripping
  • Staircase Stripping
  • Square Wave Stripping
  • Differential Pulse Voltammetry Stripping
  • Normal Pulse Voltammetry Stripping
  • Differential Normal Pulse Voltammetry Stripping
Amperometric
  • Differential Pulse Amperometry (DPA)
  • Double Differential Pulse Amperometry (DDPA)
  • Triple Pulse Amperometry (TPA)
  • Integrated Pulse Amperometric Detection (IPAD)
 Electrochemical Impedance Spectroscopy (EIS)
  • EIS vs Frequency (IMP)
  • EIS vs Time (IMPT)
  • EIS vs Potential (IMPE)(Mott-Schottky)
Corrosion Measurements
  • Cyclic polarization curve (CPP)
  • Linear polarization curve (LPR)
  • Electrochemical Potentiokinetic Reactivation (EPR)
  • Electrochemical Noise (EN)
  • Zero resistance Ammeter (ZRA)
Battery test
  • Battery Charge and Discharge
  • Galvanostatic Charge and Discharge (GCD)
  • Potentiostatic Charging and Discharging(PCD)
  • Potentiostatic Intermittent Titration Technique (PITT)
  • Galvanostatic Intermittent Titration Technique (GITT)
Extensions
  • Electrochemical Stripping/ Deposition
  • Bulk Eletrolysis with Coulometry (BE)
  • Rs Measurement
