Multichannel Potentiostat

<
>
Multichannel potentiostat (8-channel, EIS*8) CS310X(Opt. D)

Option D: 8-channel, with EIS included on all 8 channels

  • 8-channel potentiostat. All 8 channels have EIS function.
    It equals that you have 8 sets independent potentiostat/galvanostat in one chassis.
    ±1A, ±10V on each channel
    Built-in EIS is equipped in all the 8 channels
    Service: warranty is 5 years. As the manufacturer, we provide excellent support . All service incl. repair is free.
    Low cost: affordable multichannel potentiostat.

Share:
View:0
Related Application
Contact Us
Corrtest Instruments
Jinfeng Building A, Intl Enterprise Center, Optics valley Ave.,East lake High-tech Dev. Zone, Wuhan city, 430074, China
Email: sales2@corrtest.com.cn
Phone/WhatsApp: +86 13469965984
Product Introduction



     Corrtest Multichannel potentiostat/ galvanostat/EIS is a versatile instrument offering 8 slots.
    Multichannel potentiostat/ galvanostat model CS310X (Option D) is the 8-channel potentiostat. And all the slots are occupied with potentiostat boards. It equals that you can have 8 sets independent potentiostat/galvanostat, and they're integrated in one chassis.
    EIS module (10&mu;Hz~1MHz) is equipped in all the 8 channel. Each channel potential control range is &plusmn;10V, current control range &plusmn;1A, can meet experiment requirement for most people.
    Full floating module and electrical isolation design guarantee each channel is totally independent, which ensures accurate data and efficient simultaneous measurements.
    Multichannel potentiostat brings convenience to those who have many samples, and is an ideal device for studies of energy materials, battery study, metal corrosion etc.

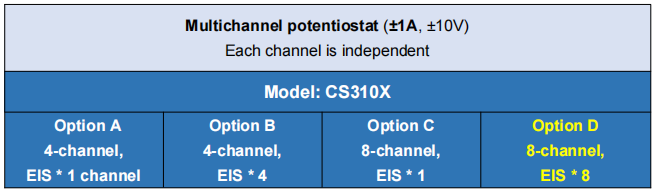

Option A: 4 independent channels,with EIS included on one channel only

Option B: 4 independent channels, with EIS included on all four channels

Option C: 8 independent channels, with EIS included on one channel only

Option D: 8 independent channels, with EIS included on all 8 channels


The number of channel and EIS module can be customized.

More channels can be added by potentiostat boards to be installed on current device.

EIS can be upgraded online.


Application

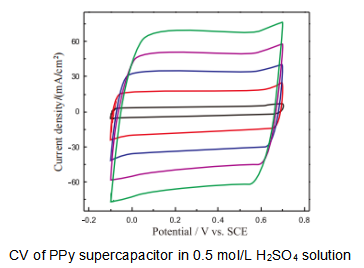

-Energy materials (Li-ion battery, solar cell, fuel cell, supercapacitors, electrocatalysis;

With versatile functions like linear sweep voltammetry (LSV), cyclic voltammetry (CV), galvanostatic charge/discharge (GCD), EIS (including potentiostatic and galvanostatic modes) with precise IR compensation, CS potentiostats are widely used in supercapacitor, Li-ion batteries, Li-S batteries, fuel cell, solar cell, solid-state batteries, flow batteries, and metal-air batteries, etc


-Reactive mechanisms of electrosynthesis, electrodeposition (electroplating), anodic oxidation, electrolysis;

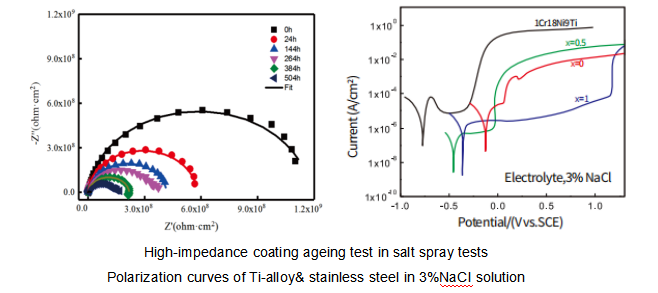

-Metallic corrosion; corrosion inhibitor, coating and cathodic protection efficiency;

CS potentiostats/galvanostats support a variety of electrochemical techniques for corrosion, such as OCP recorder, potentiodynamic, EIS, cyclic polarization (CPP), LPR, hydrogen diffusion test, zero resistance ammeter (ZRA), electrochemical noise (ECN), etc. Due to their high input impedance(1013Ω), they are especially suitable for EIS measurement of high-impedance systems like coating, concrete, and pure water.


-Electrocatalysis (HER, OER, ORR, CO2RR, NRR).

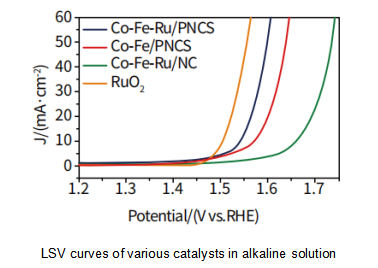

Based on CV and LSV techniques, CS potentiostats can carry out long-term testfor ORR, OER, HER, and CO2 reductionwhich is crucial for evaluating catalyst stability. In addition, the multichannel potentiostat specialize in Faradaic efficiency synchronous measurement.

CS potentiostats can measure the half-wave potential (ORR) and overpotential (HER, OER) of catalysts and calculate the power density and energy density of Redox peaks.



Simultaneous Measurements

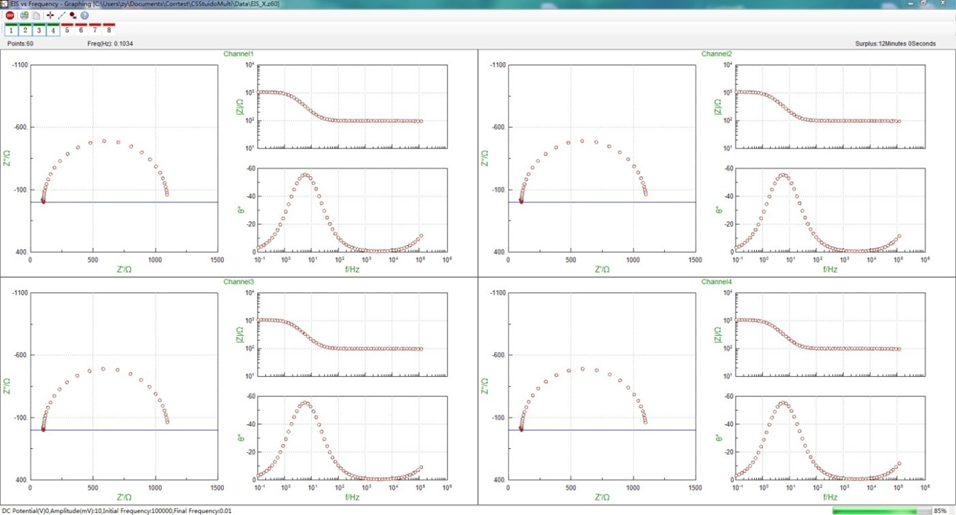

The customer can choose a same electrochemical technique in every channel. For example, among 8 channels, you can choose to run 4 channels to all do EIS measurement. Set the parameters just one time, then EIS measurement in each channel will be conducted at the same time.(Here is an example of using the 4 channels. You can run the 8 experiments at the same time on one window)

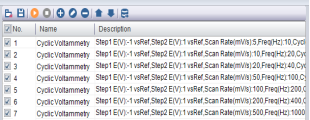

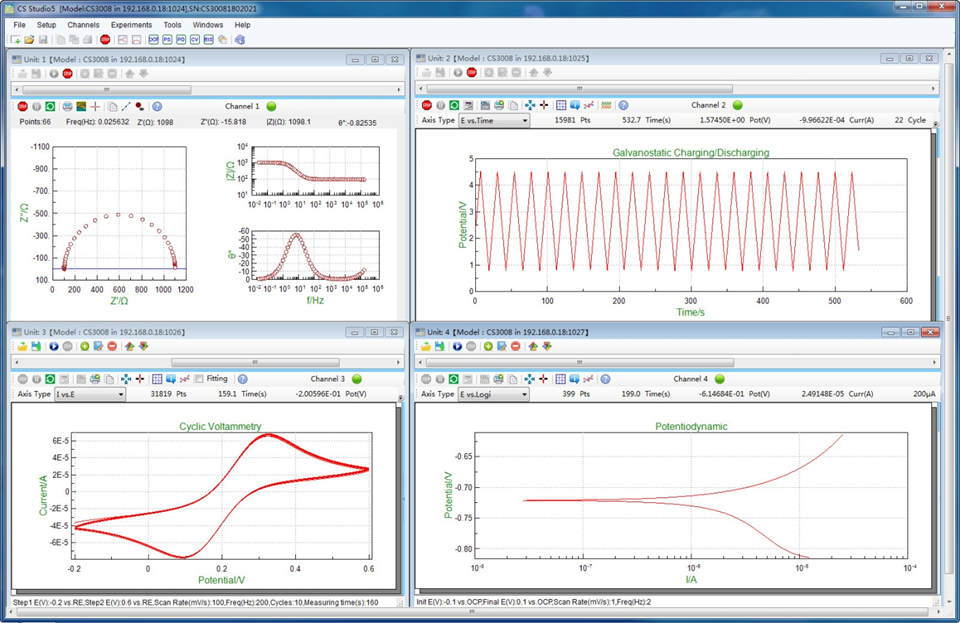

In each channel, you can also conduct different experiments. As is shown in the below picture, EIS, galvanostatic charge and discharge, CV, and polarization curve tests are conducted at the same time.(Here is an example of using the 4 channels. You can run the 8 experiments at the same time on one window)




Thanks to the expandable slot design, Customers can open the chassis and install more potentiostat board to increase the number of channels.



Standard potentiostat/galvanostat boards

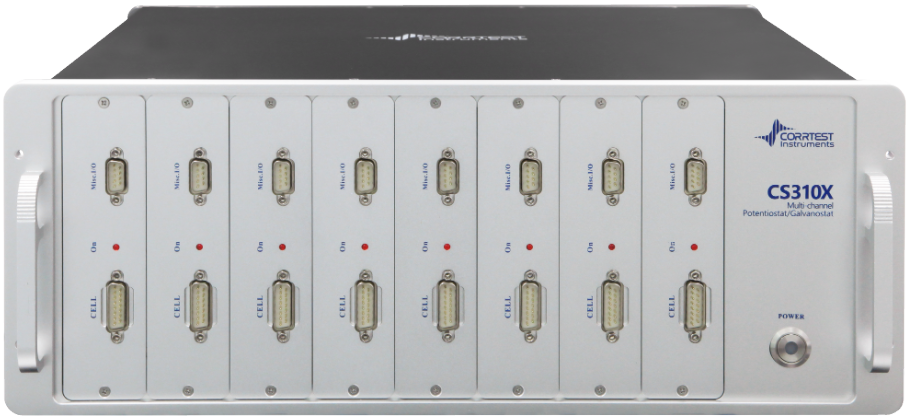

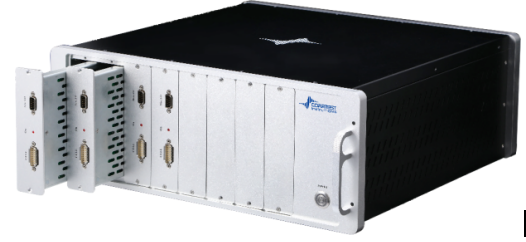

In one chassis, there are 8 slots inside.

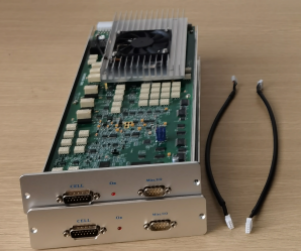

For 4-channel, four standard Pstat/Gstat boards are installed and there are 4 empty slots for future extension of channels.

For 8-channel potentiostat, eight standard Pstat/Gstat boards are installed in the 8 slots.


Technical Advantages

Switchable floating and earthing mode

All CS potentiostats/galvanostats can switch between the floating and earthing modes, and this strategy is beneficial for studying electrochemical systems in which the working electrodes are intrinsically ground, such as autoclaves, in-site concrete structures and multi-working electrodes requiring isolation, etc.

High-bandwidth EIS

with the help of built-in digital FRA and arbitrary signal generator, as well as the high input impedance (1013 W), the CS potentiostat is particularly suitable for EIS measurements of high-impedance systems (such as coating, membrane, concrete, etc.)

Based on the DC bias compensation technique, CS potentiostats can conduct EIS tests under different charge/discharge states of batteries, making them suitable for ultra-low resistance systems, such as power batteries, fuel cells, water-splitting equipment, etc.

Multiple electrode configurations

CS potentiostats support 2-, 3-, or 4-electrode configurations and can measure the galvanic current via built-in zero resistance ammeter circuits.

Independent multiple channels

For CS 310X multi-channel potentiostat, each channel is completely independent. It can be used for the electrochemistry measurements of multiple cells or multiple working electrodes in a cell.

User-defined sequence test

CS Studio 6.0 for Windows software supports user-defined sequence tests ("combination test")which can facilitatautomatic testing according to user-defined experiment sequences.

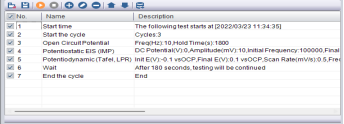

                                      Sequence Test: corrosion tests                 Sequence Test: Pseudocapacitor tests



Power booster

Through CS2020B/CS2040B/CS2100B booster, the CS potentiostats can extend their output current up to ±20A/40A/100A, meeting the growing requirements in fuel cells, power batteries, electroplating.



Software development kit (SDK)

All CS potentiostats run under the control of CS Studio 6.0 for Windows (CSS 6.0). The CSS6.0 supports third-party languages, such as LabVIEW, C, C++, C#, VC, Python and others. Some API general interfaces and development examples can be supplied with the CS potentiostats. Through the SDK, customers can implement user-defined test methods.



Overcurrent overpotential protection

The software will give an overload current or overload potential warning if the current or potential is exceeding the maximum current/ potential output of the instrument. The test will stop automatically.



Real-time data saving

CSS 6.0 saves experimental data timely, even if the experiment is accidentally interrupted by a power failure or computer shutdown. CSS 6.0 supports several data formats compatible with Originpro and Microsoft Excel.



Multi-user capability

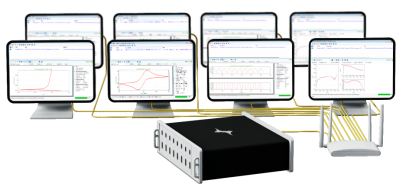

Channels of the CS310X can be allocated to multiple users on various computer.




Versatile data analysis functions

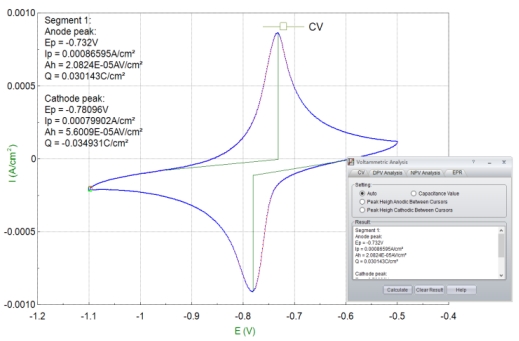

CS6.0 provides robust functions, including various electrochemical measurements and data analysis. It can complete Tafel plot fitting, CV derivation, integration and peak height analysis, EIS equivalent circuit fitting, etc.

3, 4 parameter polarisation curve fitting.

EIS fitting

Electrochemical noise spectrum analysis

Pseudo-capacitance calculation

GCD-specific capacitance, efficiency calculation

Mott-Schottky analysis

CV curve analysis

Activation/re-passivation curve analysis








Specifications
Techniques in each channel – CS310X Option D
(EIS is included in all the 8 channels)


Stable polarization
  • Open Circuit Potential (OCP)

  • Potentiostatic (I-T curve)

  • Galvanostatic

  • Potentiodynamic (Tafel plot)

  • Galvanodynamic (DGP)

Transient Polarization
  • Multi Potential Steps

  • Multi Current Steps

  • Potential Stair-Step (VSTEP)

  • Galvanic Stair-Step (ISTEP)

Chrono Method
  • Chronopotentiometry (CP)

  • Chronoamperametry (CA)

  • Chronocaulometry (CC)

Voltammetry
  • Linear Sweep Voltammetry (LSV)

  • Cylic Voltammetry (CV)

  • Staircase Voltammetry (SCV)

  • Square Wave Voltammetry (SWV)

  • Differential Pulse Voltammetry (DPV)

  • Normal Pulse Voltammetry (NPV)#

  • Differential Normal Pulse Voltammetry (DNPV)

  • AC Voltammetry (ACV)

  • 2nd harmonic AC Voltammetry (SHACV)

  • Fourier Transform AC Voltammetry (FTACV)

Stripping Voltammetry
  • Potentiostatic Stripping

  • Linear Stripping

  • Staircase Stripping

  • Square Wave Stripping

  • Differential Pulse Voltammetry Stripping

  • Normal Pulse Voltammetry Stripping

  • Differential Normal Pulse Voltammetry Stripping

Amperometric
  • Differential Pulse Amperometry (DPA)

  • Double Differential Pulse Amperometry (DDPA)

  • Triple Pulse Amperometry (TPA)

  • Integrated Pulse Amperometric Detection (IPAD)

 Electrochemical Impedance Spectroscopy (EIS)
  • Potentiostatic EIS (Nyquist, Bode)

  • Galvanostatic EIS

  • Potentiostatic EIS (Optional freq.)

  • Galvanostatic EIS(Optional freq.)

  • Mott-Schottky

  • Potentiostatic EIS vs. Time (Single freq.)

  • Galvanostatic EIS vs. Time (Single freq.)

Corrosion Measurements
  • Cyclic polarization curve (CPP)

  • Linear polarization curve (LPR)

  • Electrochemical Potentiokinetic Reactivation (EPR)

  • Electrochemical Noise (EN)

  • Zero resistance Ammeter (ZRA)

Battery test
  • Battery Charge and Discharge

  • Galvanostatic Charge and Discharge (GCD)

  • Potentiostatic Charging and Discharging(PCD)

  • Potentiostatic Intermittent Titration Technique (PITT)

  • Galvanostatic Intermittent Titration Technique (GITT)

Extensions
  • Electrochemical Stripping/ Deposition

  • Bulk Eletrolysis with Coulometry (BE)

  • Rs Measurement

Techniques
Specifications
Number of channels: 8 (Option D)Channel insulation resistance: >100MΩ
Communication: EthernetLower-pass filter: covering 8-decade
Potential control range: ±10VConstant current control range: ±1A
Potential accuracy: 0.1%×full range±1mV Current accuracy: 0.1%×full range
Potential resolution:1μVCurrent resolution: 1pA
Potential rise time: 1μs(<10mA),<10μs(<2A)Current range: 2nA ~1A
Reference electrode input impedance: 1012Ω||20pFMaximum current output: ± 1A
Compliance: ±12VCurrent increment during scan: 1mA @1A/ms
CV and LSV scan rate: 0.001mV~10000V/sPotential increment during scan: 0.076mV@1V/ms
CA and CC pulse width: 0.0001~65000sDPV and NPV pulse width: 0.0001~1000s
SWV frequency:0.001~100KHzCV minimum potential increment: 0.075mV
AD data acquisition: 16bit@1MHz,20bit @1kHzIMP frequency:10μHz~1MHz
DA resolution:16bit, setup time:1μsCurrent and potential range: automatic
Operating System requirements:
  Windows 10/11
Weight: 12Kg
Electrochemical Impedance Spectroscopy(EIS)
Signal generator
Frequency range:10μHz~1MHzAC signal amplitude: 1mV~2500mV
Frequency accuracy:0.005%Signal resolution: 0.1mV RMS
DDS output impedance: 50ΩDC Bias: -10V~+10V
Wave distortion: <1%Waveform: sine wave, triangular wave, square wave
Scan mode: Logarithmic/linear, increase/decrease
Signal analyzer
Maximum integral time:106 cycles or 105sMeasurement delay:0~105S
Minimum integral time:10ms or the longest time of a cycle
DC offset compensation
Potential compensation range: -10V~+10VCurrent compensation range: -1A~+1A
Bandwidth adjustment: automatic and manual, 8-decade frequency range
