Single channel potentiostat

20A Potentiostat with Current Booster(CS2020B)

CS2020B can boost the current upto ±20A. It can be connected with single channel models such as CS350M, CS310M.

CS350M can be used alone as ordinary single channel potentiostat(±2A), and can also be used with CS2020B booster(±20A).
Related Application
Contact Us
Corrtest Instruments
Jinfeng Building A, Intl Enterprise Center, Optics valley Ave.,East lake High-tech Dev. Zone, Wuhan city, 430074, China
Phone/WhatsApp: +86 13469965984
Product Introduction

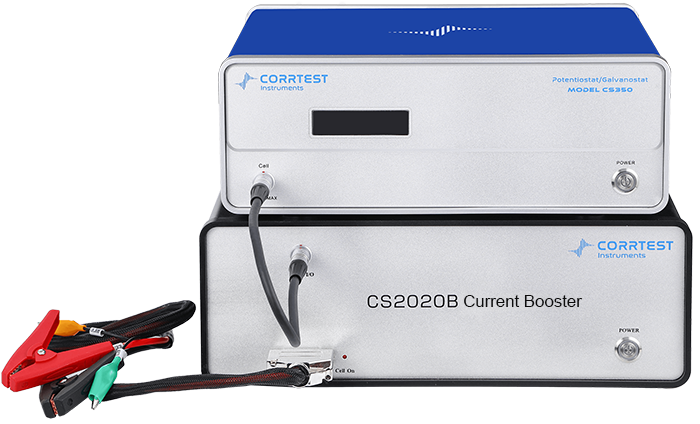

CS2020B current booster can be used with model CS350M single channel potentiostat/galvanostat. This combination can be applied in the field of fuel cell, soft pack battery, battery core testing, electroplating etc. The maximum current output is ±20A.
CS350M can be used alone as ordinary single channel potentiostat, and can also be used with CS2020B booster.

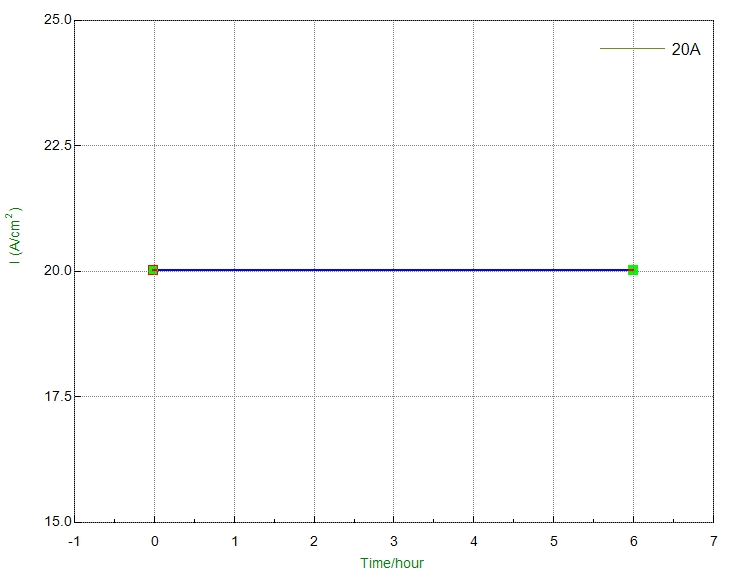

Fig. 1: Curve for galvanostatic experiment- output constant current as high as 20A

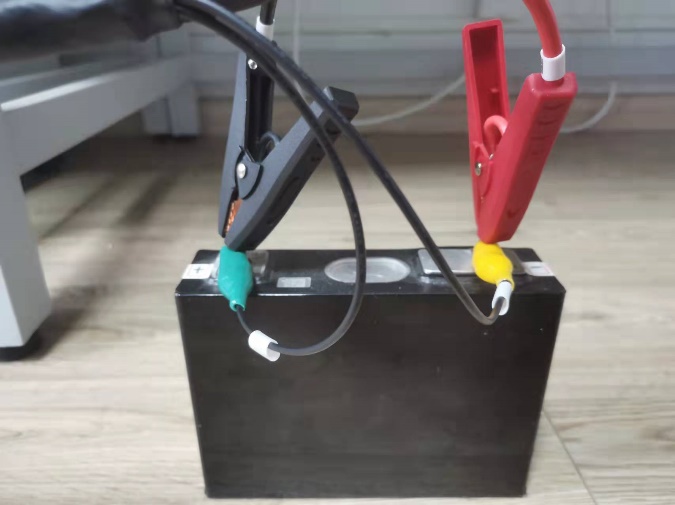

Fig. 2: Connection of CS2020B with battery core anode and cathode

Fig. 3: EIS results of CATL-LAE895 battery core

Standard supply list
CS350M Potentiostat /galvanostat 1 set
Software 1 set
Power cable *1
USB cable *1
Electrode cable *2
Dummy cell*1

Current Booster CS2020B - 1 set
Power cable*1
Serial port connection cable *1
Electrode connection cable *1
CS2020B specialized electrode cable *1

After-sales Service:
1. Warranty period: 5 years. During this period, all service including repair is TOTALLY FREE.
2. Provide installation guidance and manual.
3. Lifetime free software upgrading (of the same model) and technical service
Key specifications (when combination of CS2020B+CS350M)
Potential range: ±10V
Current range: ±20A
Current range: 20A fixed range
Compliance voltage:±13V (when output±20Alimit current, maximum output ±10V@20A)
EIS Frequency range: 50KHz
Communication: RS485
Techniques (when combination of CS2020B+CS350M)
Stable polarization
  • Open Circuit Potential (OCP)
  • Potentiostatic (I-T curve)
  • Galvanostatic
  • Potentiodynamic (Tafel plot)
  • Galvanodynamic (DGP)
Transient Polarization
  • Multi Potential Steps
  • Multi Current Steps
  • Potential Stair-Step (VSTEP)
  • Galvanic Stair-Step (ISTEP)
Chrono Method
  • Chronopotentiometry (CP)
  • Chronoamperametry (CA)
  • Chronocaulometry (CC)
  • Linear Sweep Voltammetry (LSV)
  • Cyclic Voltammetry (CV)
Electrochemical Impedance Spectroscopy (EIS)
  • EIS vs Frequency (IMP)
  • Galvanostatic EIS
  • EIS vs Potential (IMPE)(Mott-Schottky)
  • EIS vs Time (IMPT)
  • Galvanostatic EIS vs Time
Battery test
  • Battery Charge and Discharge
  • Galvanostatic Charge and Discharge (GCD)
  • Potentiostatic Charging and Discharging(PCD)
  • Potentiostatic Intermittent Titration Technique(PITT)
  • Galvanostatic Intermittent Titration Technique(GITT)
Corrosion Measurements
  • Cyclic polarization curve (CPP)
  • Linear polarization curve (LPR)
  • Electrochemical Potentiokinetic Reactivation (EPR)
  • Electrochemical Noise (EN)
  • Zero resistance Ammeter (ZRA)
